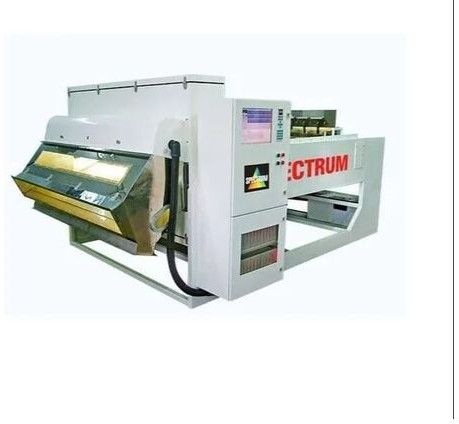

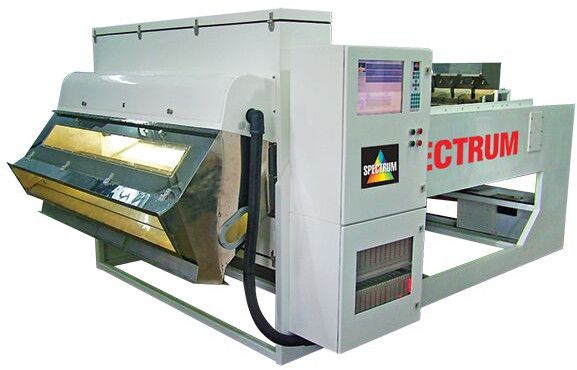

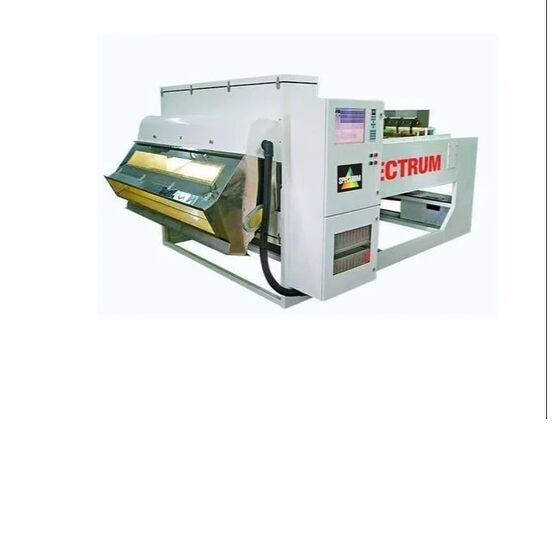

SBS-4001 Maxima Belt Type Trichromatic RGB Full Colour CCD Camera Sorter
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Spectrum |
| Application | Ideal For Sorting Whole Cashewnuts |
| Air Quality | Free of Oil, Water and Dirt |
| Click to view more | |
Preferred Buyer From
| Location | India, Myanmar, Bangladesh, Egypt, Ethiopia, Kenya, Malawi, Nigeria, Russian Federation, Spain, Tanzania, United Republic of, Uganda, Ukraine, Cyprus, Indonesia, Papua New Guinea, Sudan, United States |
Product Details
Ideal for sorting Whole Cashewnuts in order to avoid breakage due to the use of belt feed system and for sorting brittle products such as Almonds, Raw & Blanched Peanuts etc. Can also be used for sorting non-free flowing material such as Raisins, Fresh & Dehydrated Vegetables such as Onion, Garlic, Carrot Cubes etc . Available in capacities ranging from 0.5 to 5 tons per hour
The SBS-4001 PRISMA use advanced digital 2048 pixel CCD Line Scan Cameras that produce a very high resolution image of the object. The S-4001 MAXIMA use advanced 5400 x 3 pixels, Full colour Tri-linear RGB CCD Line Scan Cameras to scan the product in the Red, Green and Blue region of light in order to identify even subtle defects in product quality. The machines have LED Solid State Lighting that provides High intensity long life stable lightning.
Large Format Lenses with digital automatic LED Backlights are employed to ensure highest quality imaging of the product, that is also displayed on a 15” colour LED TFT screen, for online viewing and monitoring of the product. The resultant data is compared with pre-set parameters, to reject the defective product using ultra-fast, long life, custom designed pneumatic ejectors.
The machines have the ability to detect and reject over 200,000 objects/minute with a defect size of even 0.025 mm sq. They are fully computer controlled with automatic calibration and self-check Instant change over from one product sort to another is possible, using pre-stored sorting Algorithms.
Features:
- High Resolution Monochromatic 2048 pixels CCD Cameras or 5400 x 3 pixels, Full colour Tri-linear RGB CCD Cameras.
- Monochromatic or Penta-chromatic LED Solid State high intensity long life stable lightning.
- On-line live visual display of product being sorted on 15” colour LED TFT Screen.
- Ultra-fast long life pneumatic ejectors with response time of 1 ms and life of up to 5 billion cycles.
- Automatic cleaning of viewing area by wiper system.
- Fully computer controlled with Automatic online calibration with self-check procedures.
