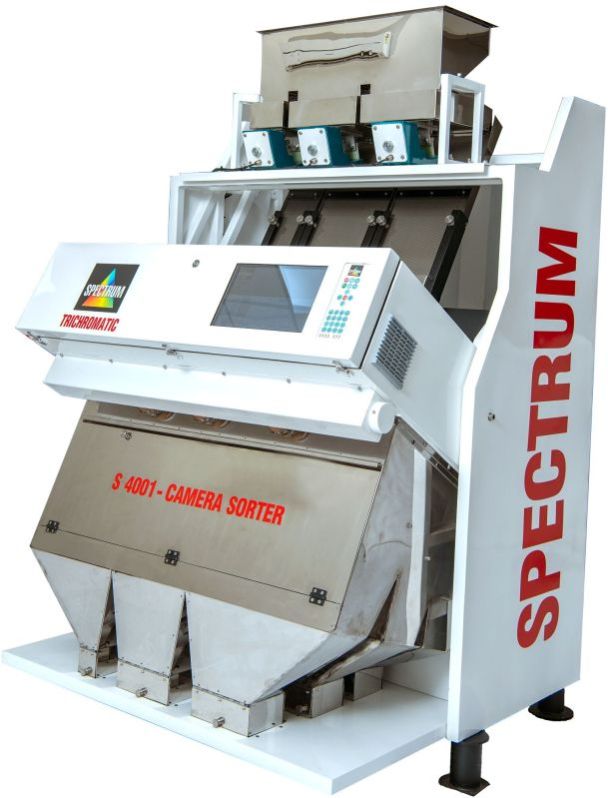

S-4001 Prisma CCD Camera Based Colour Sorter
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Spectrum |
| Driven Type | Electric |
| Pressure | 7 Bar (100 PSI) |
| Click to view more | |
Preferred Buyer From
| Location | India, Myanmar, Bangladesh, Egypt, Ethiopia, Kenya, Malawi, Nigeria, Russian Federation, Spain, Tanzania, United Republic of, Uganda, Ukraine, Cyprus, Indonesia, Papua New Guinea, Sudan, United States |
Product Details
The machine has LED Solid State Lighting that provides High Intensity long life stable lightning. Large Format Lenses with digital automatic LED backlights are employed to ensure highest quality imaging of the product, which is also displayed on a 15” Colour LED TFT screen, for online viewing and monitoring of the product. The resultant data is compared with pre-set parameters, to reject the defective product using ultra-fast, long life, custom designed pneumatic ejectors.
The S-4001 PRISMA has the ability to detect and reject over 200,000 objects/minute with a defect size of even 0.025 mm. sq. The S-4001 PRISMA is fully computer controlled with automatic calibration and self-check procedures.
Features:
- High Resolution 2048 pixels CCD Cameras.
- LED Solid state high intensity long life stable lightning.
- On-line live visual display of product being sorted on 15” Colour LED TFT screen.
- Ultra-fast long life pneumatic ejectors with response time of 1 ms and life of up to 5 billion cycles.
- Automatic cleaning of viewing area by wiper system.
- Automatic online calibration with self-check procedures.
- Fully computer controlled.
